Water, mud, oil, and dust can quickly turn a garage or service area into a difficult workplace. PP grating floor tiles provide a practical way to create a cleaner, safer-looking, and easier-to-maintain surface without permanently bonding a covering to the concrete. Their open-grid structure allows liquids and small debris to pass below the walking surface, while modular snap-lock edges make installation, color zoning, access, and replacement straightforward.
Designed for garages, car wash bays, detailing studios, and workshops, these grid tiles combine drainage with a reusable modular system. Standard and customized configurations are available for distributors, contractors, and private-label buyers.
Product Overview
PP grating flooring is made from square injection-molded modules that connect along all four sides. The raised open-rib surface separates feet and tires from water on the substrate, while the reinforced underside distributes loads and creates space for drainage and airflow.
Common options include 400 × 400 mm and 500 × 500 mm tiles, with heights such as 18 mm, 20 mm, and 30 mm depending on the model. Multiple colors can define parking bays, work zones, walkways, or brand patterns. Confirm dimensions, weight, loading requirements, color, and packing before ordering.
Core Features
Fast Drainage and Ventilation
The open-grid surface lets rinse water, rain, melted snow, and loose dirt move below the top plane. This helps reduce surface puddles and keeps operating areas visually organized. The substrate still needs a suitable slope and functioning drain; the tile creates a raised drainage surface but does not replace the site’s drainage system.
Tool-Free Interlocking Installation

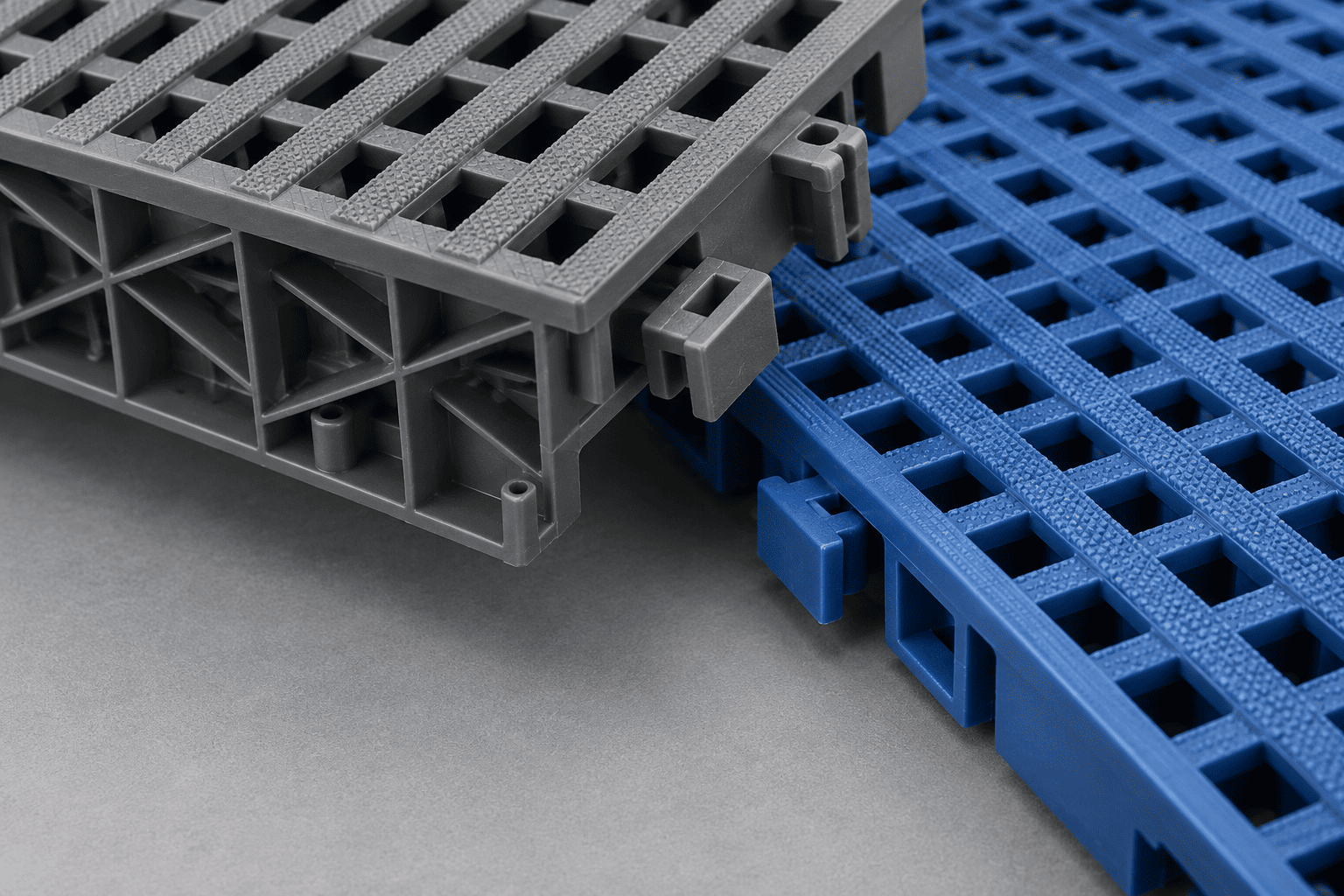

Male and female connectors snap neighboring tiles together without wet adhesive. Installers can cover prepared concrete efficiently, trim perimeter pieces where required, and add edge ramps for a smoother transition. Because the floor is modular, sections can be lifted for deep cleaning or utility access.
Textured, Open-Rib Surface
Molded texture adds grip at the contact points, while the grid reduces the amount of standing liquid underfoot. Slip performance varies with surface design, footwear, contaminants, and cleaning conditions, so commercial projects should request test data for the exact model.
Flexible Color Planning
Contrasting tiles can mark vehicle positions, pedestrian routes, washing zones, or display areas. This makes the product useful both as functional flooring and as a simple visual-management system.
Material and Manufacturing Process
Polypropylene is widely used for modular grating tiles because it combines low water absorption, useful chemical resistance, and good moldability. For demanding projects, buyers should specify the required resin grade, recycled-content policy, temperature range, impact performance, and resistance to the chemicals used on site.
Production begins with controlled PP resin and color masterbatch. The compounded material is melted and injected into a precision mold that forms the surface ribs, drainage openings, support lattice, and interlocking connectors in one cycle. After cooling and ejection, tiles should be checked for flatness, incomplete filling, flash, color difference, brittle connectors, and deformation.
A strong tile depends on more than its overall weight. Rib layout, wall thickness, connector geometry, cooling consistency, and material formulation all affect performance. Export buyers should evaluate finished tiles from normal production, not only a hand-selected showroom sample.
Application Scenarios
PP grating floor tiles suit spaces that need drainage, modular installation, or frequent cleaning:

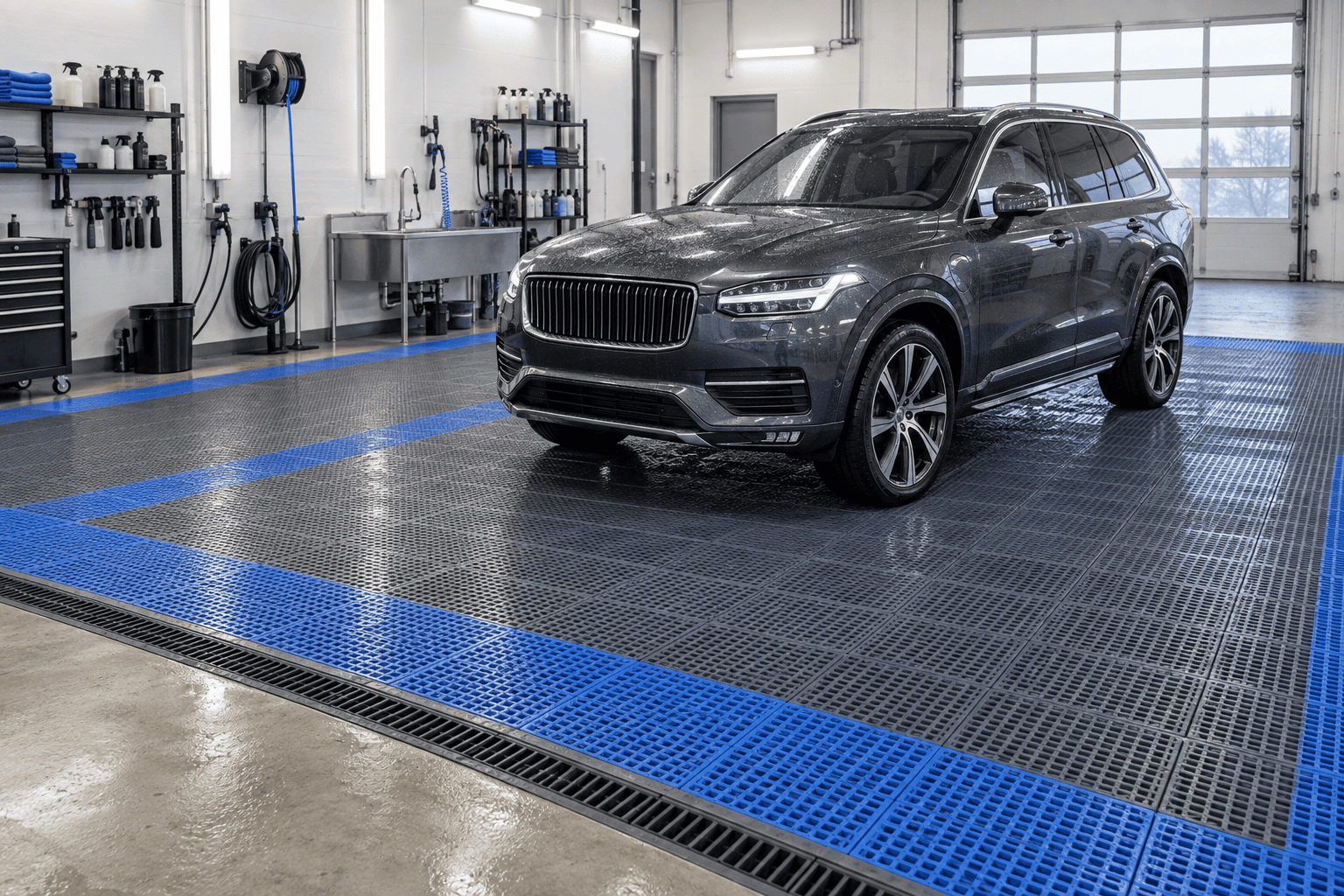

- Car wash and detailing bays: water passes through the grid while colored borders organize each work position.
- Residential and commercial garages: the raised surface covers stained concrete and creates a cleaner finished appearance.
- Automotive workshops: damaged or contaminated modules can be removed individually instead of replacing the complete floor.
- Dealerships and vehicle display areas: custom color layouts help define premium presentation zones.
- Warehouses and utility rooms: modular sections create dry walking paths in selected areas.
- Covered terraces, poolside service zones, and changing areas: drainage and ventilation help manage water where the substrate and local installation conditions are suitable.
- Exhibitions and temporary events: the snap-lock system can be installed, removed, transported, and reused.
For outdoor or high-UV exposure, confirm the resin stabilization and colorfastness required for the local climate. For fire-regulated buildings, request the relevant fire-test classification before approval.
Product Advantages for Importers and Project Buyers
The strongest commercial advantage is flexibility. One format can support several colors, layouts, and replacement plans without changing the installation method.
The floating structure also reduces installation downtime. There is no adhesive curing period, and a worn or damaged module can be exchanged locally. This helps service businesses keep operating and makes maintenance costs easier to control.
Injection-molded tiles also suit OEM programs. Color, packaging, edge pieces, and logo treatment can be discussed for volume orders. Approved specifications give buyers repeatable references for dimensions, locking compatibility, and batch color.
How to Choose the Right Grating Floor Tile
Start with the real jobsite rather than selecting by color alone.
| Selection Item | What the Buyer Should Confirm |
|---|---|
| Tile size and height | Available floor area, required drainage clearance, door and ramp transitions |
| Load conditions | Vehicle type, wheel loads, floor jacks, tool cabinets, and rolling traffic |
| Surface design | Drainage opening, grip texture, wheel comfort, and cleaning method |
| Material | PP grade, recycled-content requirement, impact and temperature performance |
| Chemical exposure | Detergents, oils, fuels, salts, and disinfectants used on site |
| Installation system | Connector strength, expansion allowance, perimeter edging, and repair access |
| Appearance | Approved color sample, batch tolerance, zoning plan, and custom requirements |
| Compliance | Slip, fire, load, chemical, or UV reports required by the destination market |
Before mass production, assemble a sample area rather than inspecting one loose tile. Check joint alignment, tile flatness, connector fit, rolling noise, drainage behavior, surface grip, and cleaning access. Test the floor under representative wheels and equipment, and keep a signed approval sample for color and construction comparison.
Why Source PP Grating Flooring From AutoPP Floor?
AutoPP Floor supplies modular flooring for automotive, workshop, and commercial applications. Buyers can discuss grid patterns, dimensions, colors, edge ramps, packing, and OEM requirements with one export team.
Whether you need a single-color garage system or a branded multi-zone layout for a detailing chain, we can help match the product configuration to the site, target market, and order volume. Explore our interlocking garage floor tiles or contact AutoPP Floor for samples, technical data, and a project quotation.
Conclusion
PP grating floor tiles turn wet, dusty, or unfinished utility floors into organized modular surfaces. Their open drainage structure, snap-lock installation, replaceable modules, and customizable colors make them especially suitable for garages, car wash bays, workshops, and automotive display areas. The best result comes from matching tile height, structure, resin, loading performance, and drainage design to the actual jobsite.
Send us your floor plan, application, vehicle type, preferred colors, required test standards, and order quantity to receive a tailored grating-floor recommendation.
*Specification note: Sizes and heights shown are common product options. Final construction, performance values, tolerances, compliance documents, and packing must be confirmed in the approved quotation and purchase contract.
